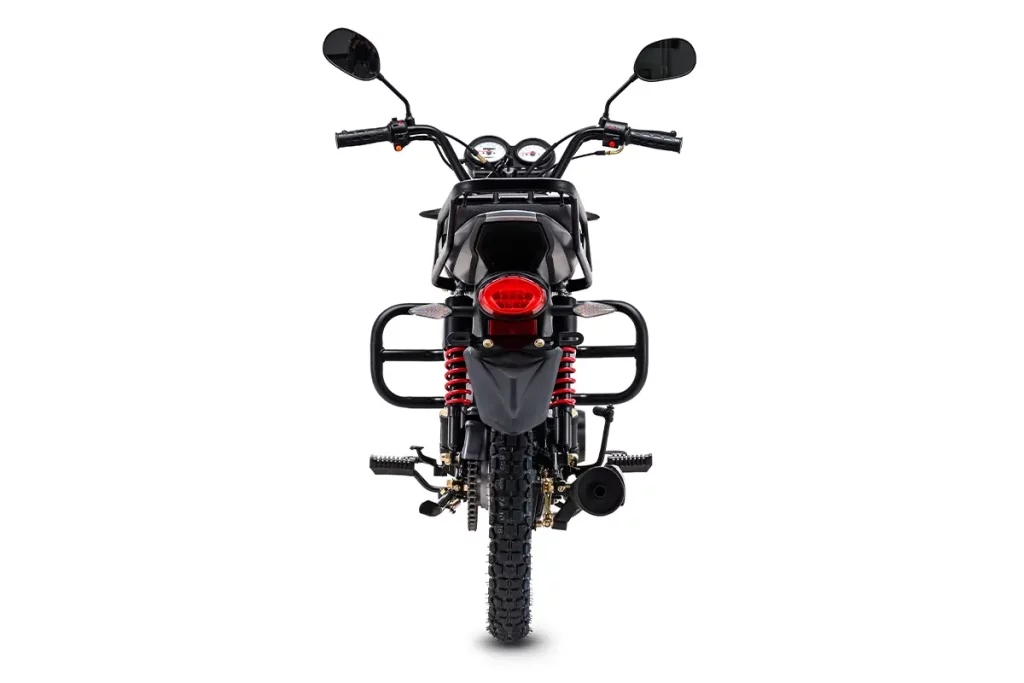

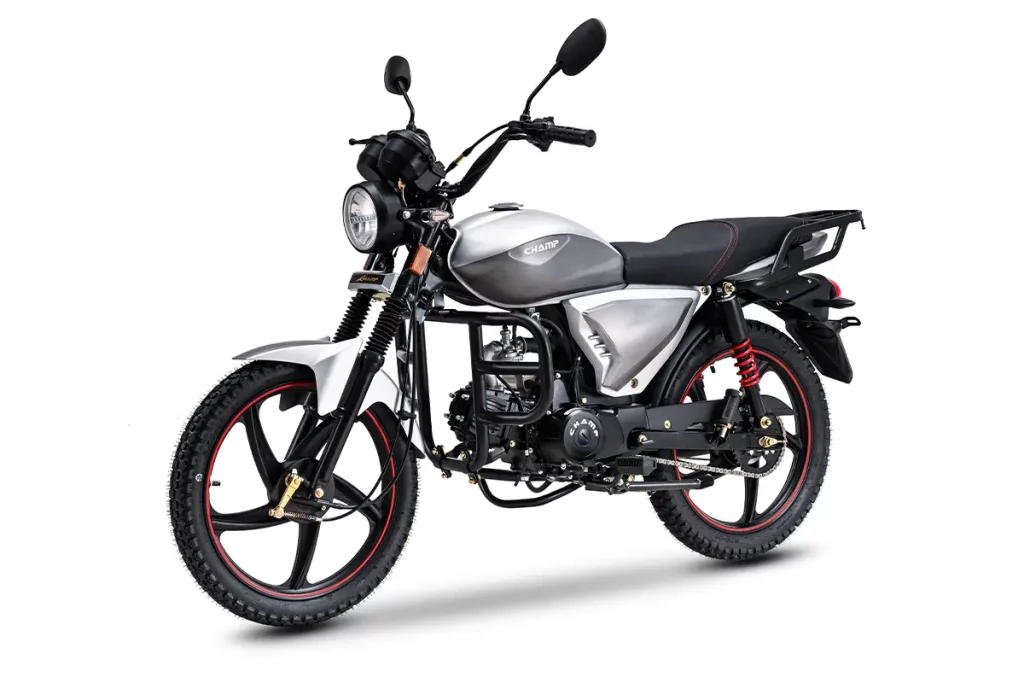

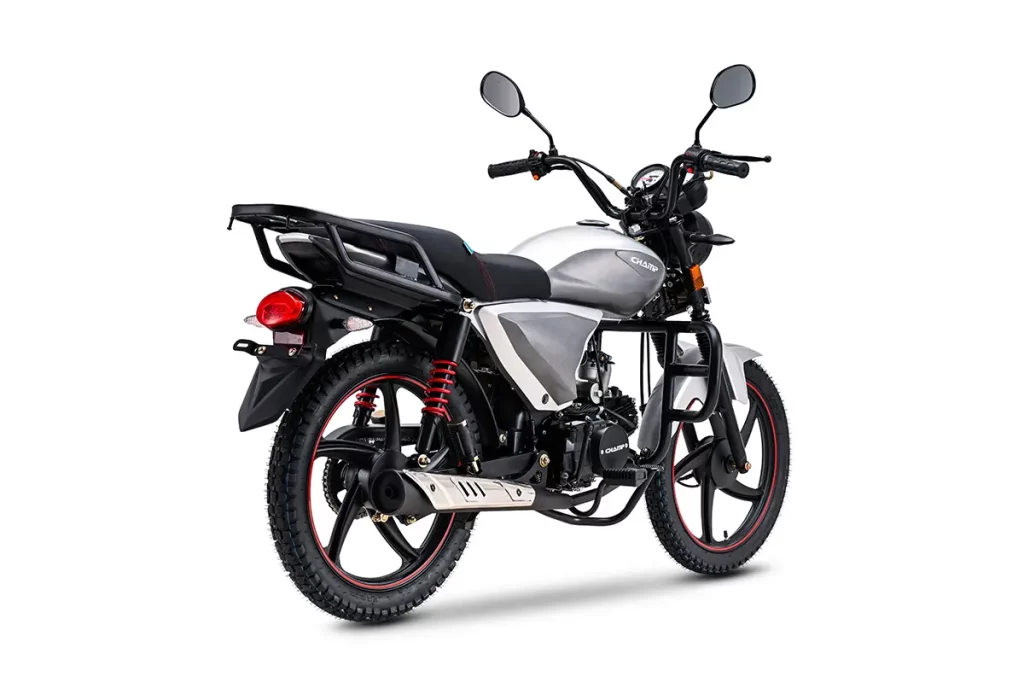

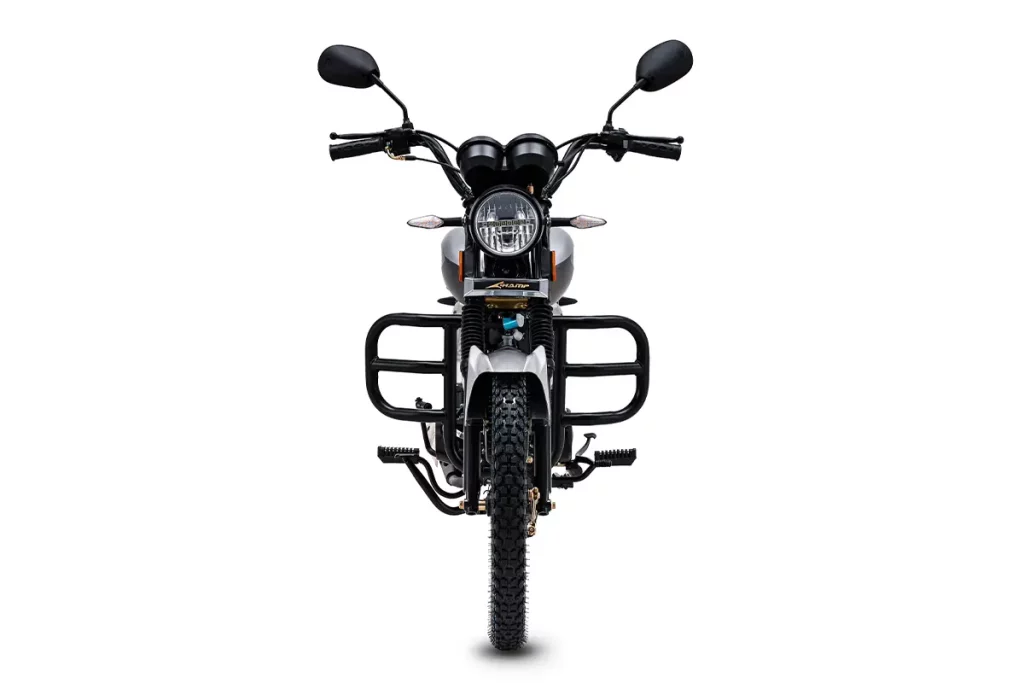

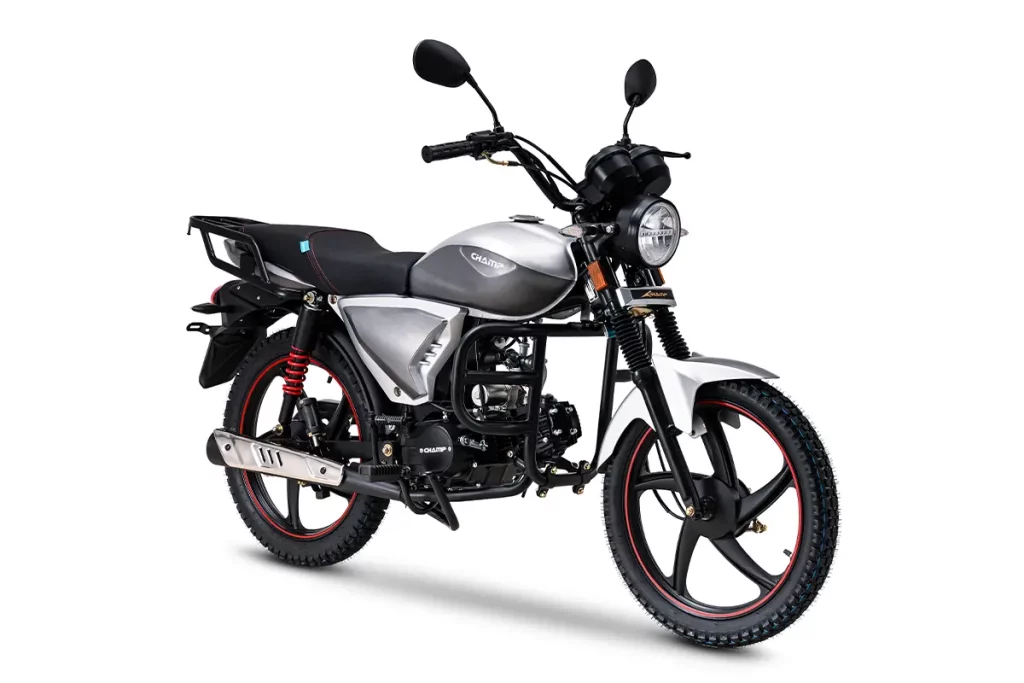

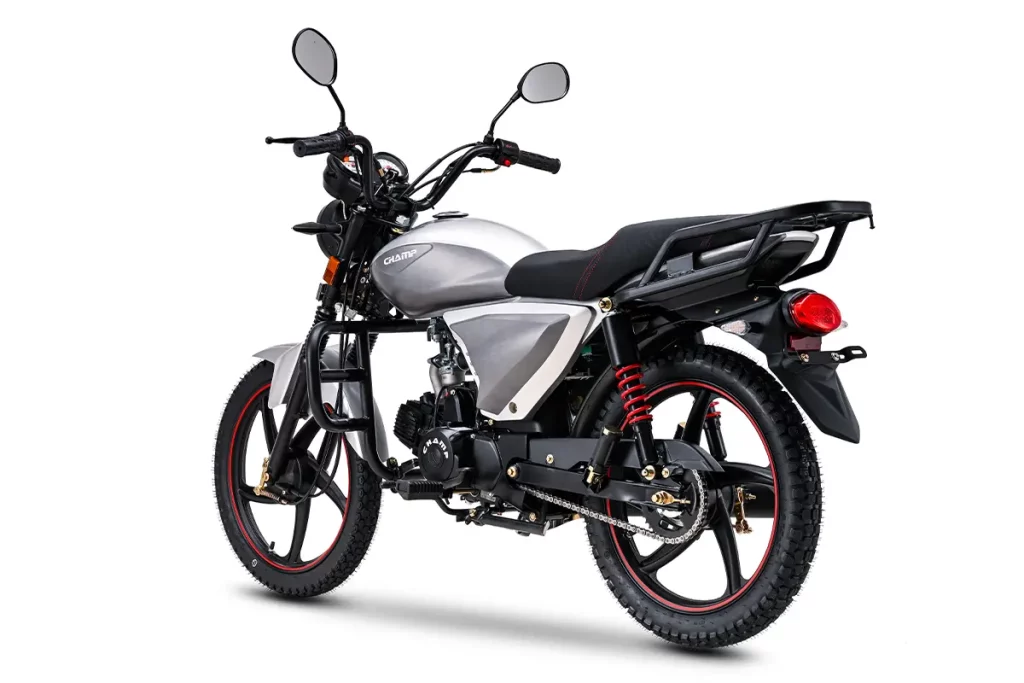

2025 Street motorcycle CM110-A(F2)
110cc / 120cc / 125cc
CM110-A(F2)
| ITEMS | CM110-A(F2) | CONTENTS | ||
| Vehicle Parameters | VIN No. (The first 8 digits of VIN) | LTEPCHLB#R | ||
| Dimensions (L×W×H)（mm） | 1900×760×1030 | |||
| Wheelbase（mm） | 1210 | |||
| Minimum ground clearance（mm） | 160 | |||
| Seat height（mm） | 760 | |||
| Vehicle curb weight（kg） | 96 | |||
| Rated load mass（kg） | 150 | |||
| Brake type (front/rear) | Drum | |||
| Brake operation method (front/rear) | Hand operation/foot operation | |||
| Rim type (front/rear) | Spoke/spoke | |||
| Tire size (front/rear) | Front 2.5-17/Rear 2.75-17 Deep Groove Tyre | |||
| Tire pressure (front/rear) (kPa) | 225/250 | |||
| Maximum speed | 80 | |||
| Starting performance (s) | ≤15 | |||
| Accelerated performance (s) | start acceleration(s) | ≤16 | ||
| Beyond Acceleration (s) | ≤15 | |||
| Gradeability （°） | ≥18 | |||
| fuel tank capacity（L） | 11L | |||
| Trademark/Model | 1P53FMH | |||
| Type | Single Cylinder, 4stroke,air cooling, Horizontal | |||
| Vehicle Parameters | Bore x Stroke（ mm） | 52.4×49.5 | ||
| Displacement（mL） | 106.7 | |||
| Compression ratio | 8.8：1 | |||
| Maximum net power and corresponding speed（kW/（r/min）） | 5.1/8000（1±1.5%） | |||
| Maximum torque and corresponding speed（N·m/（r/min）） | 7.2/5000（1±1.5%） | |||
| Minimum no-load stable speed (idle speed)（r/min） | 1500±150 | |||
| Minimum fuel consumption（g/（kW·h）） | ≤354 | |||
| Fuel type and grade | Gasoline 90# and above | |||
| Lubricant grade | SF 15W/40 | |||
| Lubricant capacity（L） | 1.0L | |||
| Lubrication method | Pressure, splash compound | |||
| Clutch type | Manual wet multi-piece | |||
| Transmission type | Constant gear drive,4gears | |||
| Starting method | Electric foot start | |||
| Ignition method | CDI | |||
| Shift method | 4gears, non-circulated | |||
| Transfer method | Chain drive | |||
| Four gears | Primary | 3.722 | ||
| 1Gear | 3.273 | |||
| 2Gear | 1.938 | |||
| 3Gear | 1.350 | |||
| 4Gear | 1.043 | |||
| Final Gear | 3.214 | |||
| Component parameters | Carburetor Model or Specification | PZ19 |
| Catalytic Converter Model or Specification | Without | |
| Spark plug model or specification | NGK DR8EA/TORCH-A7RTC | |
| Battery model or specification | 12V/5Ah Maintainence free battery | |
| Air filter type | Foam filter | |
| Exhaust muffler system | Single | |
| Radio disturbance suppression method | Impedance | |
| Remark：Description of vehicle status | Front Shock Absorber | Hydraulic spring type, non-adjustable, front shock absorber total length: 675mm, 45 steel, sub-black, recovery resistance 90N, front reduction stroke: 90mm, fork pipe is ¢27mm, sleeve outer diameter: ¢34mm. |
| Rear Shock Abosorber | Manually adjustable rear shock absorber is more comfortable, the installation center is 340mm, the number of spring coils: 15 turns, the wire diameter: ¢7mm, the stroke is: 65mm. | |
| Carburator | PZ19, Manual damper | |
| Handlebar | The diameter of the handlebar is ¢22mm, and the high leather grain is painted | |
| Upper Connector | ST12 | |
| Direction column lower link | The lower connecting plate is 35 steel forged. Strength. | |
| Flat Fork | The flat fork is a steel square tube, combined welding, the flat fork is more flexible around the movement, no stagnation, and the performance is more comfortable | |
| Rear brake pedal | The main pipe is the brake pedal after the tube is shrunken | |
| Side Rack | Steel round pipes | |
| 428H Chain | 428H-102 | |
| Pedal | ï¿ 12 Reinforced striped rubber footpegs | |
| Head light | Round headlights, full LED, high brightness up to 30000Cd, top and bottom separation, power: 12V20W/10W | |
| Tail Light | LED tail lights with LED high-brightness brake warning lights. Power: 12V5W/3W | |
| Front/Rear Turn Light | LED turn signal, power: 12V/1.5W | |
| Instrument | Shepherd double round gauge | |
| Sprocket | 428-42T-galvanize | |
| Cushion | Plastic black bottom panel, universal black non-slip leather, double red line. |
| Remark：Description of vehicle status | muffler | Lacquer with guard |
| Front/Rear Break | Front/Rear Drum Break | |
| Front/Rear Aluminum Wheel | Front 1.4×17/Rear 1.6×17 Drum Break | |
| Front/Rear Tyre | Front 2.5-17/Rear 2.75-17 Deep Groove Tyre | |
| Frame | Plate welding combination, high strength. Surface treatment uses double-layer paint, electrophoresis + leather grain. | |
| Oil Tank | Extra large fuel tank–11L is suitable for long-distance driving. | |
| Sell Point Introduction | New appearance, water transfer printing brushed pattern withf silver white paint, shepherd double round instrument, eagle front shock absorber and lamp lugs, the whole car LED lamps, economical and energy-saving, cost-effective, flexible and durable, override maintenance is simple. The seat height is 760mm high, suitable for most drivers (height 1.65m–1.9m), minimum ground clearance is 160mm, 11-liter large fuel tank, Russia and North America are in highly demand |
