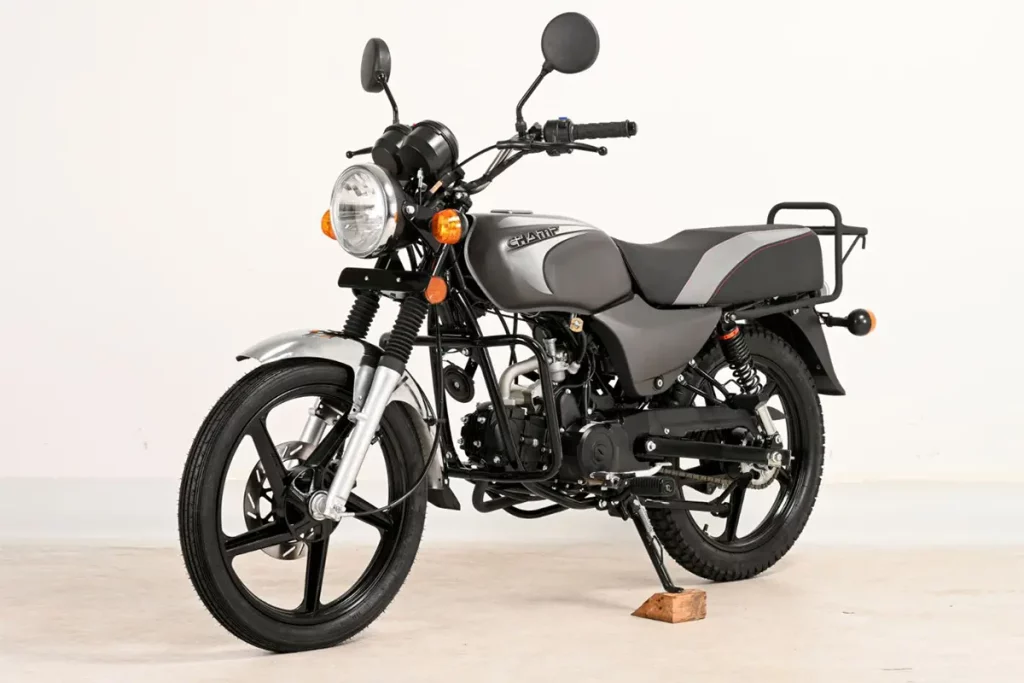

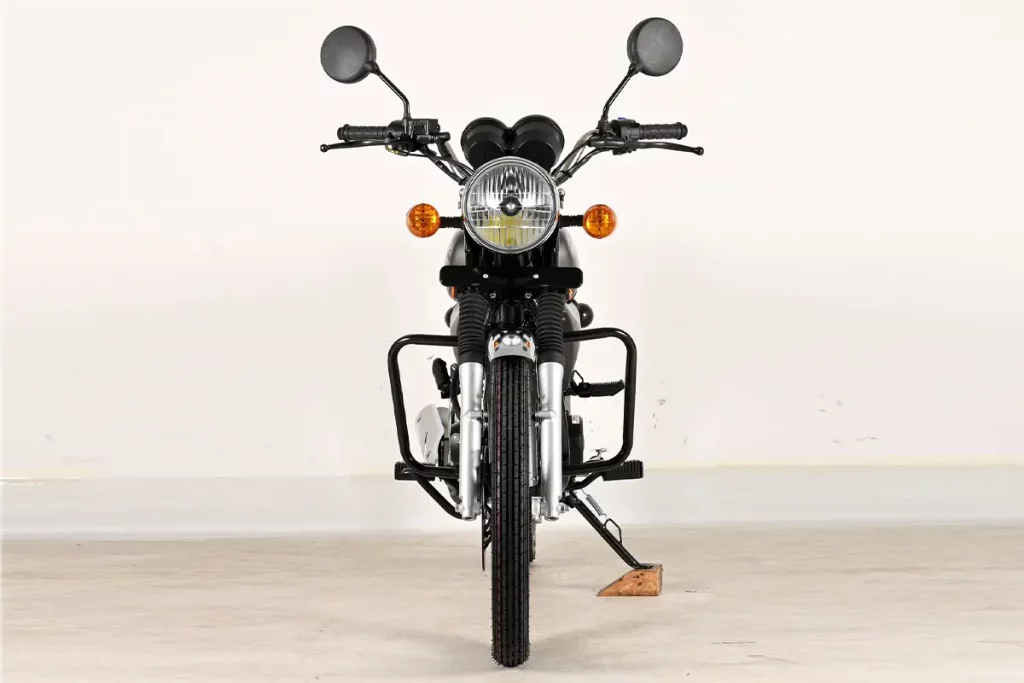

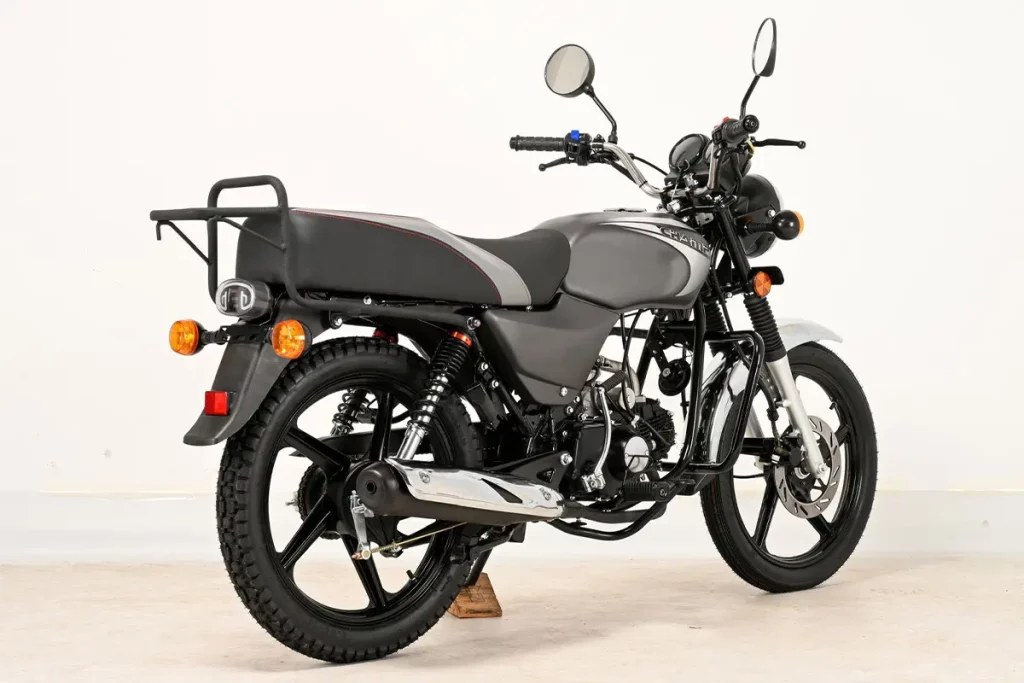

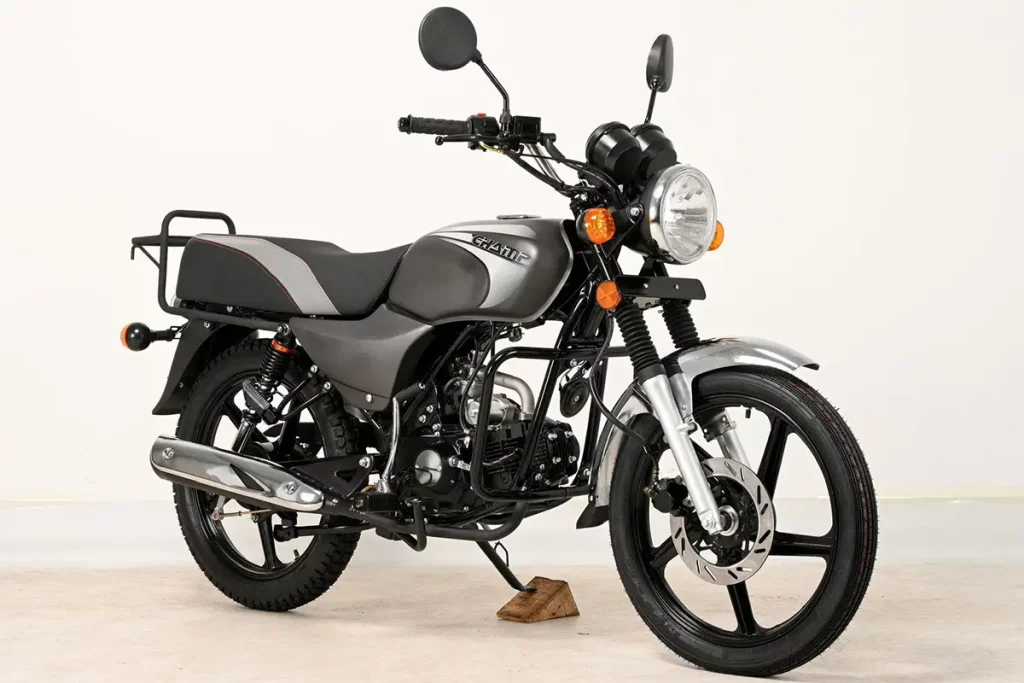

2025 Street motorcycle hero CM125-17A

110cc / 120cc / 125cc

CM125-17A

  • Engine Type: Single sylinder,4stroke,air cooling
  • Dimensions (L×W×H): 2100×750×1100
  • Wheelbase (mm)：1300
  • Displacement (mL): 123.6
  • Starting method: Electric
  • Fuel tank capacity (L): 10.5L
  • Maximum speed: 95KW
  • Tire size (front/rear): 3.0-18 3.25-18

（Standard Configuration Technical Parameters）
ITEMSCM125-17ACONTENTS
                Vehicle
Parameters		VIN No. (The first 8 digits of VIN)LTEPBJH08RA000001
Dimensions (L×W×H)（mm）2100×750×1100
Wheelbase（mm）1300
Minimum ground clearance（mm）190
Seat height（mm）830
Vehicle curb weight（kg）95
Rated load mass（kg）150
Brake type (front/rear)Front disc and rear drum
Brake operation method (front/rear)Hand operation/foot operation
Rim type (front/rear)Aluminum wheels
Tire size (front/rear)3.0-18 3.25-18
Tire pressure (front/rear) (kPa)225/250
Maximum speed95
Starting performance (s)≤15
Accelerated performance(s)start acceleration(s)≤14.9
Beyond Acceleration (s)≤14
Gradeability    ( ° )≥18
fuel tank ca  acit    （L）10.5L
 Trademark/Model1P54FMI
TypeSingle sylinder,4stroke,air cooling
Vehicle ParametersBore x Stroke（ mm）54×54
Displacement（mL）123.6
Compression ratio8.8 ：1
Maximum   net   power   and   corresponding   speed（ kW/6.0/7500（1±1.5%）
Maximum   torque   and   corresponding   speed （ N · m/9.2/5500（1±1.5%）
Minimum no-load stable speed (idle speed)（r/min）1500±150
Minimum fuel consumption（g/（kW ·h））≤354
Fuel type and gradeGasoline 90# and above
Lubricant gradeSJ 10W/40
Lubricant capacity（L）1.0L
Lubrication methodPressure, splash compound
Clutch typeManual wet multi-piece
Transmission typeEngagedgearswith4-speed transmission
Starting methodElectric
Ignition methodCDI
Shift method4gears, non-circulated
Transfer methodChain drive
  Transmission Ratio6gearsprimary3.722
First Gear3.272
Second Gear1.937
Third Gear1.350
Fourth Gear1.043
Component
parameters		Carburetor Model or SpecificationPZ20
Catalytic Converter Model or SpecificationWithout
Spark plug model or specificationNGK DR8EA/TORCH-A7RTC
Battery model or specificationMaintain free Battery
Air filter typeFoam filter
Exhaust muffler systemSingle
Radio disturbance suppression methodImpedance
Remark:
Description
of vehicle
status		Front shock absorberHydraulic spring-type, non-adjustable,total length of the front shock absorber: 725mm,
sleeve material: 45# steel,Baking lacquer, Compression resistance:-7N,recovery resistance   178N,  front  shock  absorber stroke: 115mm. fork tube for ¢ 31mm, sleeve outer diamter: ￠47mm
Rear Shock absorberHydraulic  spring  type,installation  centre 350mm, compression resistance 42KG, recovery
resistance  123KG,  the  number  of  spring coils: 13.5 circles, equal pitch, steel wire diameter: ¢ 7mm, stroke:73mm
CarburatorPZ20, Manual damper
Handle BarHandle Bar ¢ 22mm,Composite pipes
Upper connector101A Cast  aluminum  alloy. High  strength  and  light weight. Beautiful.
Lower connector35 steel forging. High    Strength.
Flat ForkFlat  fork  is  made  of  steel,combination welding, the flat fork around the spirit of more living, no stalling,Rear comfortable.
Rear break PeddleRear brake pedal with Steel-molded
Side RackSteel round pipes
428H Chain428H-108 pc
PeddleSmall rack 3 / 5
InstrumentLCD double round gauge
Remark：
Description
of  vehicle
status		SilencerThe main body and cylinder are painted with guards
front/rear BreakFront disc Rear Drum
Front/Rear Aluminum WheelFront 1.4*18-Drum Break/Rear 2. 15*18-Drum break
Front/Rear TyreFront 2.75-18/Rear 3.0-18/Deep groove tyre
FrameTubular   cradle   welding   combination,   high   strength.   The vibration is small, and the surface treatment is double-layered
Oil tankExtra-large capacity fuel tank – 10.5L, suitable for long-distance driving.
A comprehensive introduction to the selling points of
the whole vehicle		The classic  shape  of the  car, the  appearance is  generous, the maintenance  is  simple,  the  cradle  welded  combined  frame reduces vibration, the use of 18-inch  aluminum wheels,  front
disc   and   rear   drum,   comfortable   riding,   stable   cornering, economical   and   energy-saving,   cost-effective,   flexible   and durable  overrun,  headlights  and  taillights  LED,  LCD  double round instrument, electric start, widening and enlarged cushion, the   engine   is   125CC,  reliable  performance,   strong  power, flexible shifting, simple maintenance. The seat is 810mm high, suitable for most drivers (height  1.65m–1.9m),  170mm above the ground, 10.5L large fuel tank, Africa and India are in high demand
