Peak power
7200W peak power
Battery type
72V38.5 lithium battery (LG21700)
Max. speed (km/h)
100km/h top speed (19 inches tires)
Battery endurance(charging once)
130km range (30km/h)
Tire size (front/rear)
EEC&DOT are available
Chassis
Aluminous alloy chassis
Shock absorber
DNM shock absorber
Modes
3 modes (P,E,D,S)
Looking For Global Dealers
Chongqing Charming Motorcycle Manufacture Co.,Ltd., was founded in 1998, through years of development, our annual production capacity has exceeded 200,000 units of motorcycles, and we have grown into a company that integrates R&D, manufacturing, international marketing, import and export trade agency services. Sincerely looking for global distributors!
High-end Electric Motorcycle
High-speed permanent magnet synchronous mid-drive motor, 7200W peak power, more than 100km/h top speed, 72V38.5AH ternary lithium battery, aluminous alloy chassis, all LED lights, vector sine wave controller and so on, which can meet all market needs. EEC and DOT are available!
Custom Your Motorcycle
OEM&ODM Support
Charming Motorcycle Company has differend kinds of motorcycle, incluiding gasoline motorcycle such as street motorcycle, offroad, cub and electric motorcycle, we have strong development ability, we are glad to help you to creat your own products if you have any OEM&ODM needs!
Best After-sell Service
Charming Motorcycle Company is famous as its good after-sell service, we have many customers cooperated for more than 10 years, we always provides the best after-sell service to our customers, so please don’t worry about cooperating with us, we are the best choice!
Product Detailes
Handle Tube Locking
Upgraded hand tube locking method, double locking, ahead of peers, protects the direction column from damage. This locking method is more suitable for competitive off-road motorcycles, which can not only protect the off-road motorcycle itself, but also protect the safety of the rider

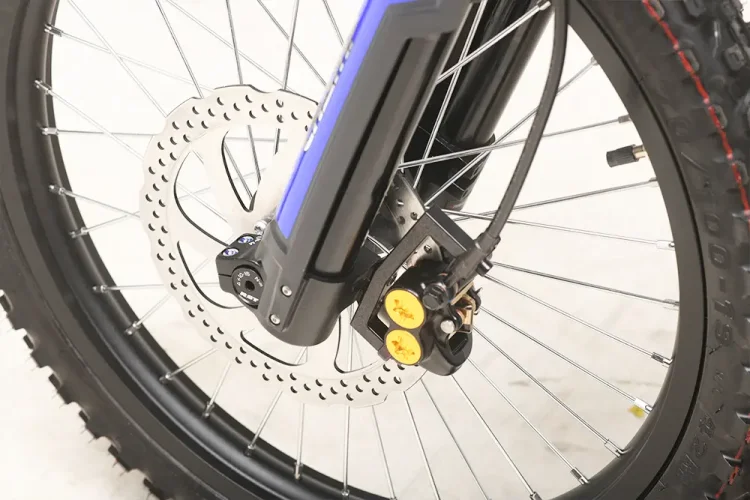

Brake System
Front and rear disc brake, disc brake disc size 220*3mm, disc brake disc thickness is better than peers, braking performance can provide maximum protection to the rider
Shock Absorber
The front shock absorber is an adjustable RST inverted shock absorber with 210mm shock travel.

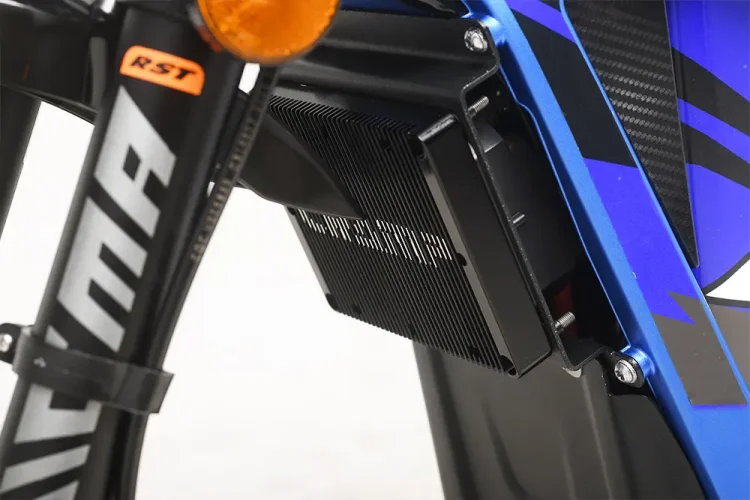

Controller
Vector sine wave controller, it can monitor speed, motor torque and current strength in real time, and constantly analyze and learn to optimize your daily driving data to better match your driving habits.
LED Lights
The road version is equipped with a full set of LED lamps, which has certain advantages in performance, brightness, quality, etc., and the LED lamp has a long life, energy saving, not easy to break, good light line, no radiation, and belongs to the green light source.
Lithium Battery
72V38.5A ternary lithium battery, equipped with imported LG21700 battery cell, 84V10A lithium battery special fast charger, charging time is less than 4 hours
Mid-drive Motor
High-speed permanent magnet synchronous mid-drive motor, 3000w rated power, 7200w peak power, the max speed is more than 100km/h. it can withstand high temperatures up to 180°C
Frame
High strength aluminum alloy forged frame, 7000 tons of pressure forging, greatly enhance the driving pleasure
Specification
| Type | High-speed permanent magnet synchronous mid-drive motor |
| Rated power | 3000w |
| Peak power | 7200w |
| Battery type | Ternary lithium battery(LG21700), 72V/38.4AH |
| Battery endurance(charging once) | 135km@30km/h |
| Charging time (h) | <4 |
| Charger | 84V10A |
| Controller | Vector Sine Wave Controller |
| Max. speed (km/h) | ＞100（both 19 inches tire） about 90km/h(front 19 rear 17/16 tire) |
| Frame | Forged in aluminum alloy |
| Brake system | Front disc/ rear disc, 220mm*3mm |
| Tire size | Fr.70/100-19 Rr. 70/100- 19 Fr.70/100-19 Rr. 80/100- 17 Fr.70/100-19 Rr. 90/100- 16 |
| Transmission system | Chain drive |
| Front shock absorber travel | 203mm |
| Rear shock absorber travel | 85mm |
| Max. Torque | ＞298N.m |
| L*W*H (mm) | 1881*770*1149 |
| Wheelbase (mm) | 1280 |
| Min. ground clearance (mm) | 270 |
| Seat height (mm) | 830 |
| Max. loading (kg) | 150 |
| Packing size(mm) | 1650*400*890 |
| Dry wight (kg)(including battery) | 72 |
| Gross weight(kg) | 114 |
| Container loading (pcs/40HQ) | 126pcs |
